Module Bill of Materials
Overview
Written context needs to added!
Pick ONLY one of the two examples show below. Remove the other example. REMOVE notations within the remaining section about being an example.
Bill of Materials (Example as Table)
Table ##: An example of one approach to adding your BOM table to this section.
| Part Name/Description | Qty | Unit Cost | Total Cost | Manufacture | Manufacturer # | Vendor Link | Datasheet Link | Schematic Reference Designators |
|---|---|---|---|---|---|---|---|---|
| 8-bit SIPO/SISO Shift Register, SOIC-16 package | 1 | $0.49 | $ 0.49 | NXP | 74HC595D,112 | DigiKey | datasheet link | U1 |
| 0.1 µF Ceramic Capacitor, +/-10%, X7R, 50V, 0805 package | 10 | 0.2750 | $2.75 | KEMET | C0805F104K5RACTU | PRLTA 109 | n/a | C2, C4, C6, C7, C8, C9, C10, C11, C12, C16 |
Note: Setting it up as a table is nice because it is completely viewable without scaling issues. Downside is that you have to do the math.
- You could also import your BOM via a screenshot of the spreadsheet created BOM
Bill of Materials (Example as Image)

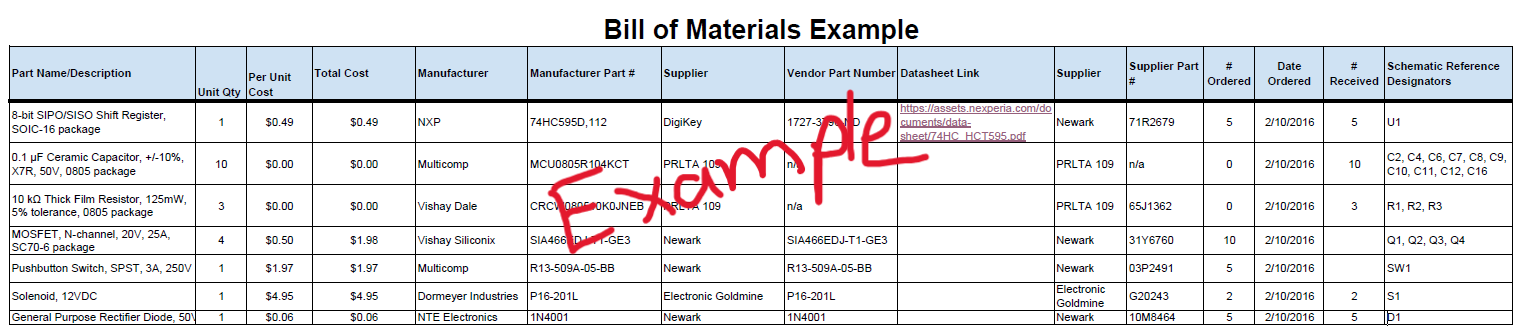

Figure ##: Example Bill of Materials as a screenshot.
As you can see, the text can be difficult to read without opening the image.
Resouce
The Bill of Material as a PDF download is available here.
